Change the 2.4 GHz wireless channel on your modem

The "Radio Setup" section of your modem's wireless setup allows you to set the wireless channel, power level, 802.11 mode, spatial streams, aggregation, and MIMO power save.

NOTE:  Depending on your model, your modem's user interface may appear slightly different from the images below.

5.  Select "2.4 GHz" in the left sidebar.

Change wifi-channel 2ghz Step 5

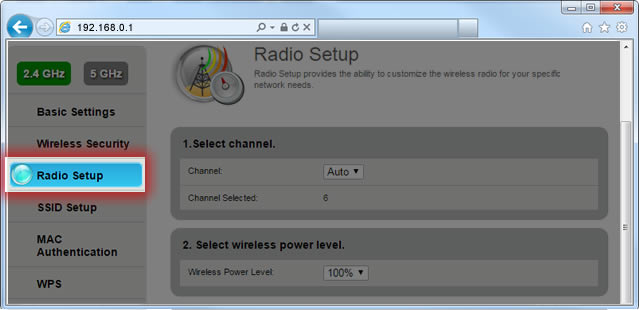

6.  Select "Radio Setup."

Change wifi-channel 2ghz Step 6

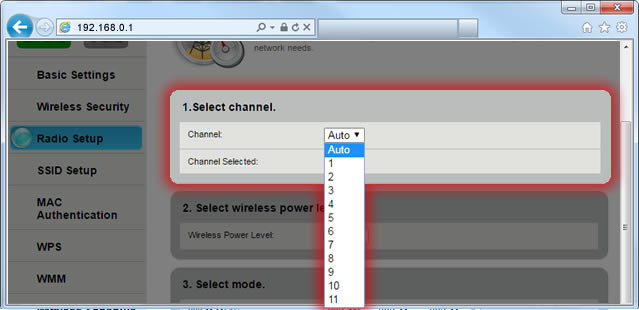

7.  Select a channel, from 1 to 11. Learn how to check your modem's wireless status for the best available channel.

Change wifi-channel 2ghz Step 7

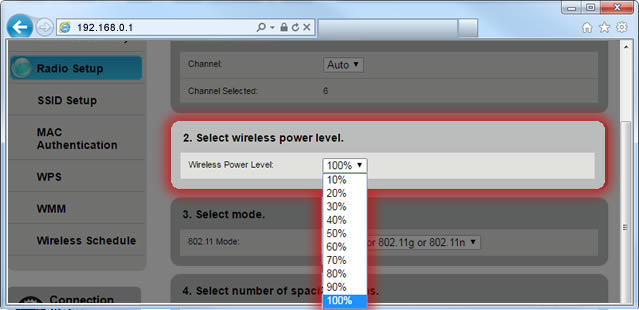

8.  Select a wireless power level, from 10% to 100%. The optimal power level depends on your environment.

  • Lower power settings create a circular coverage area with better coverage near the modem but a shorter signal range.
  • Higher power settings create an elliptical coverage area with a longer range but with reduced coverage closer to the modem.
Change wifi-channel 2ghz Step 8

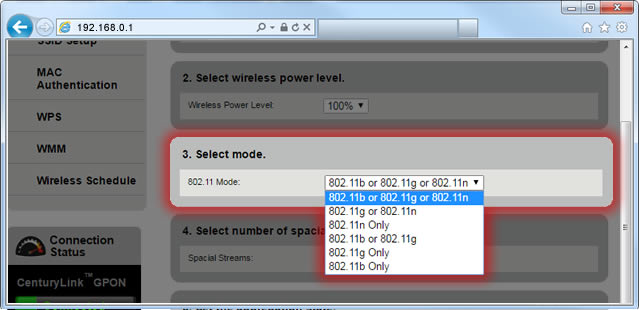

9.  Select a 802.11 mode.

Change wifi-channel 2ghz Step 9

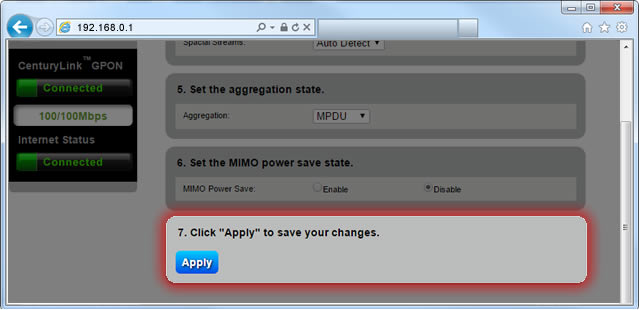

10.  Select "Apply" to save your changes.

Change wifi-channel 2ghz Step 10
