Configure WPS on your modem

WiFi Protected Setup (WPS) provides an easy and secure way to establish a wireless network by sharing the wireless key between your modem and devices.


Learn how to connect a device to your WiFi network using WPS.

NOTE:  Depending on your model, your modem's user interface may appear slightly different from the images below.

5.  If given the choice, select "2.4 GHz" or "5 GHz" in the left sidebar. Some models do not offer this option. Read more about the how to choose between 2.4 and 5 GHz frequency, and learn which modems have this capability.

Select 5ghz - Step 5

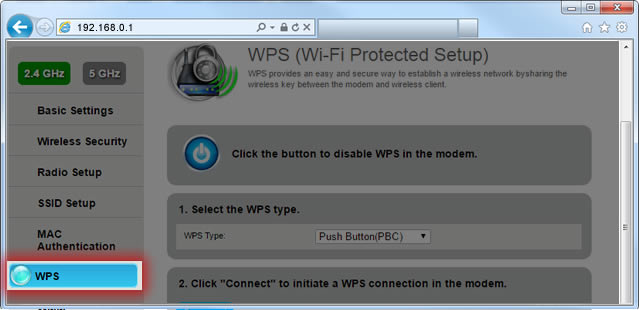

6.  Select "WPS" in the menu on the left.

Select WPS - Step 6

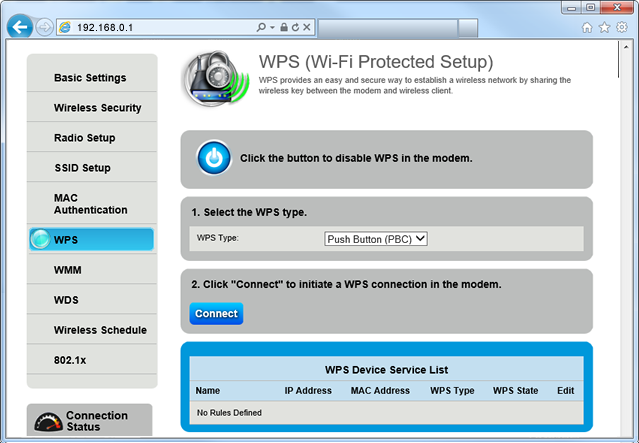

7.  Here you can disable WPS, select the WPS type, and initiate a device to connect to your network. You can also initiate a connection by pressing the WPS button on your modem or within the device settings.

disable WPS, select WPS type, and initiate a device to connect to network - Step 7
