Information about your modem’s wireless setup options

You can control the wireless network at your premises via the Wireless Settings menu of your modem/router's user interface. Some models will offer both 2.4 GHz and 5 GHz setup options for several of the features. Read more about the 2.4 or 5 GHz frequencies and how to choose the one that’s right for you.

Select a wireless menu option to view step-by-step instructions.



  • Basic Settings:  Enable/disable the wireless radio, change the network name (SSID), view the current security type, key/passphrase, and WPS PIN for the modem

  • Wireless Security:  Change the security type (WEP/WPA/WPA2) for your network

  • 2.4 GHz or 5 GHz Radio Setup:  Select the wireless channel, power level, 802.11 modes, spatial streams, aggregation, and MIMO power save

  • SSID Setup:  Create and manage up to 4 wireless networks (SSIDs)

  • MAC Authentication:  Create an allow/deny list for the WiFi radio on your modem using a MAC address

  • WPS:  Provides a secure way to share the wireless key between your modem and wireless devices automatically — learn more about WPS here

  • WMM (2.4 GHz only):  A Quality of Service feature that prioritizes traffic on your wireless network

  • WDS (2.4 GHz only):  Allows the wireless interconnection of access points via a wireless connection

  • Wireless Schedule:  Set disable times for your wireless radio

  • 802.1x (2.4 GHz only):  Combine wireless security methods using WEP or WPA with the benefits of a radius server

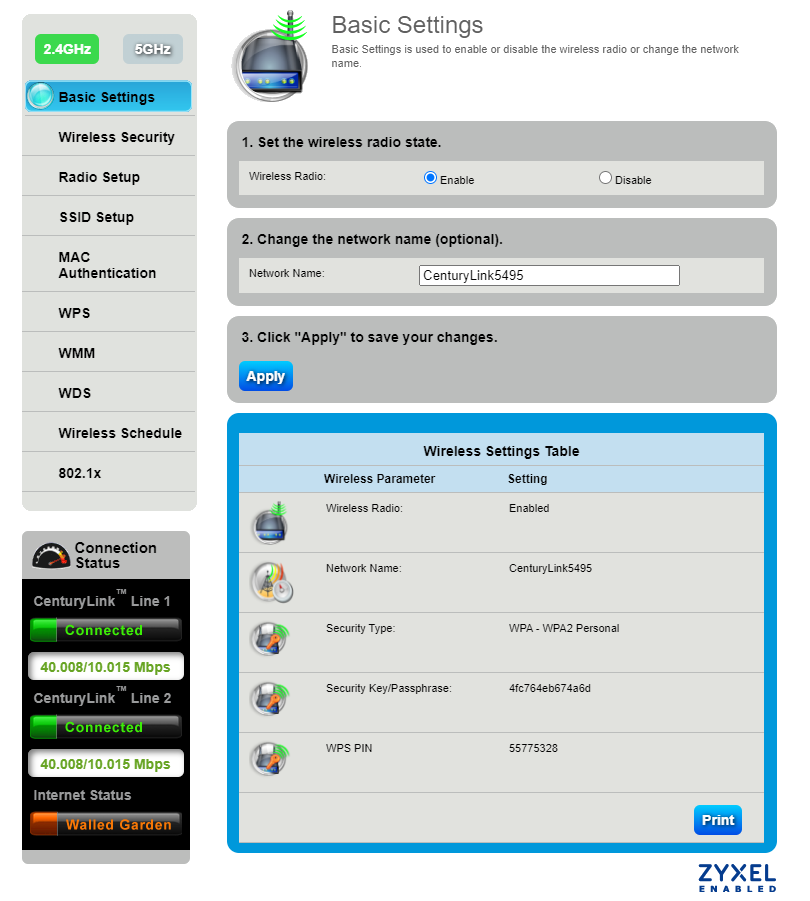

The wireless settings menu is shown below, including 2.4 GHz or 5 GHz options for some routers.

NOTE:  Depending on your model, your modem's user interface may appear slightly different from the images below.

Wireless settings screenshot
